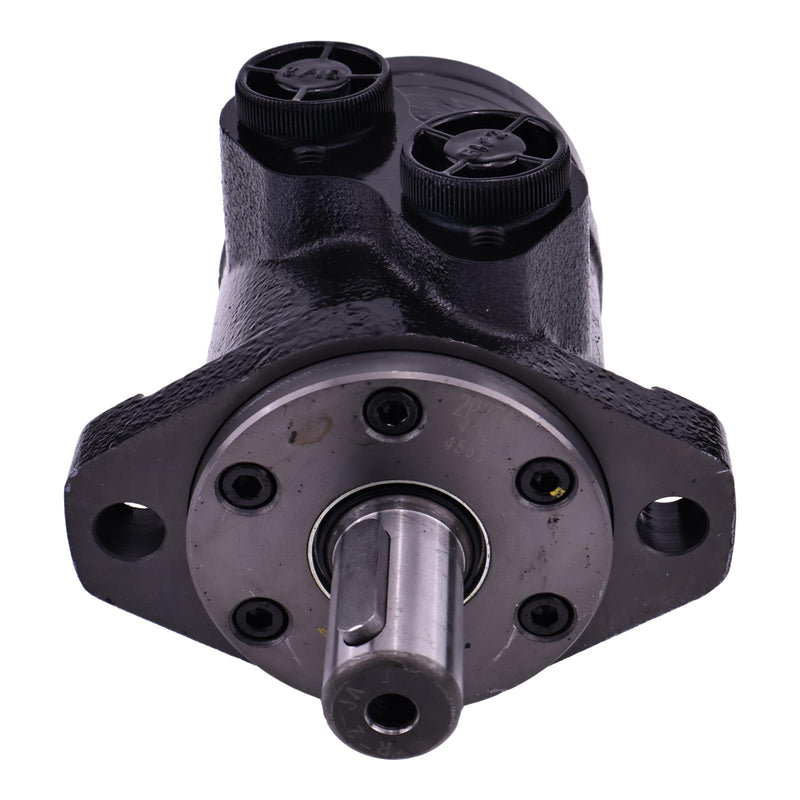

25mm 1/2 BSP Hydraulic Orbital Motor OMP X 25-11185769 11185769


Price:
$229
 More payment options

Description

Part Name: Hydraulic Orbital Motor
Manufacturing Part Number:  OMP X 25 - 11185769, 11185769
Specification:
Type: OMP X
Motor Size: 25
Geometric displacement: 25cm³/[1.53in]
Max speed cont: 1600 rpm
Max speed int: 1800 rpm
Max torque cont: 40Nm/[355lbf in]
Max torque int: 50Nm/[445lbf in]
Max output power cont: 5.4kW/[7.2hp]
Max output power int: 6.7kW/[9.0hp]
Max pressure drop cont: 115bar/[1670psi]
Max pressure drop int: 160bar[2320psi]
Max pressure drop peak:
Max oil flow cont: 40L/min
Max oil flow int: 45L/min
Max starting pressure with unloaded shaft: 10bar/[145psi]
Min starting torque at max press drop cont: 35Nm/[310lbf in]
Min starting torque at max press drop int: 50Nm/[440lbf in]
Max inlet pressure cont: 200bar/[2900psi]
Max inlet pressure int: 225bar/[3260psi]
