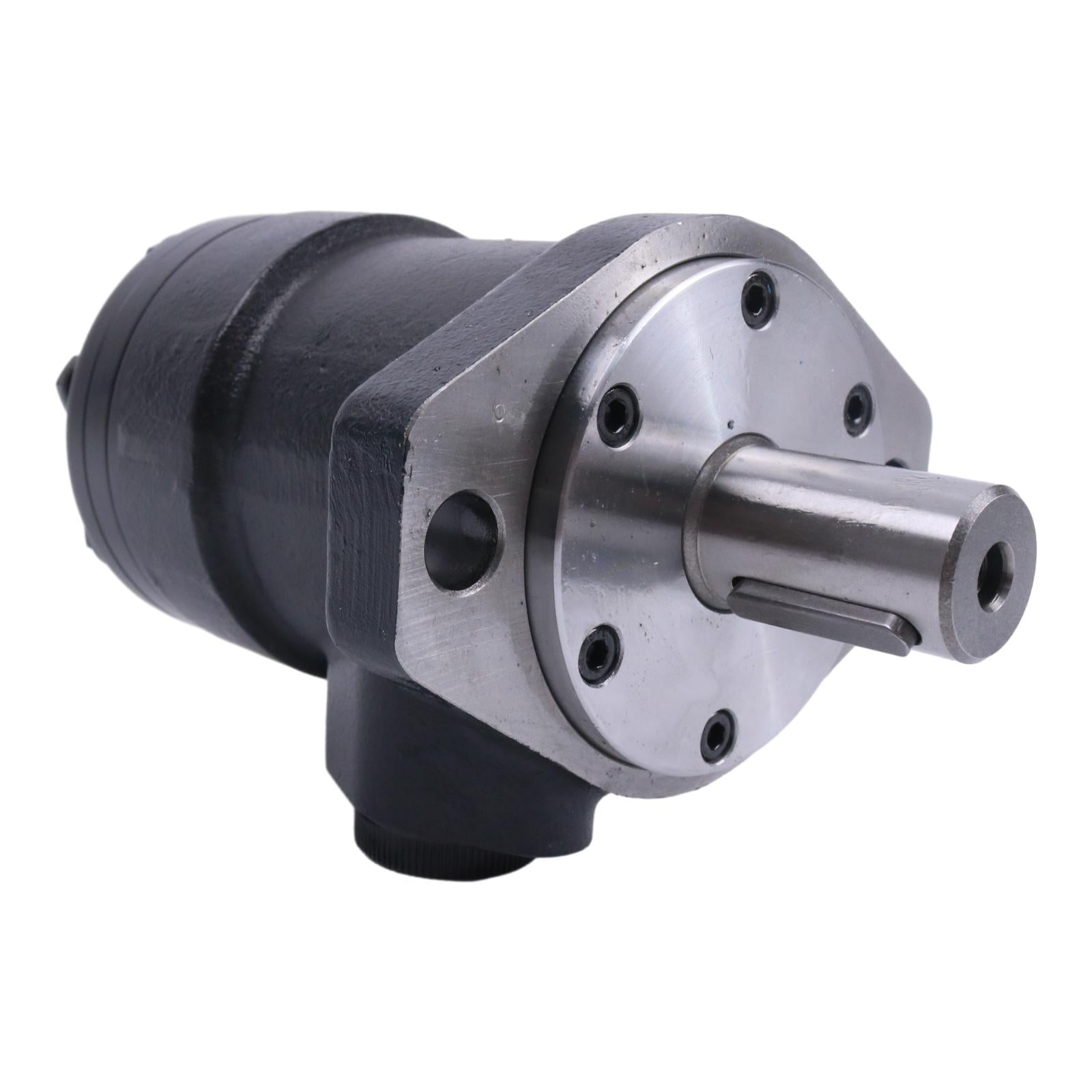

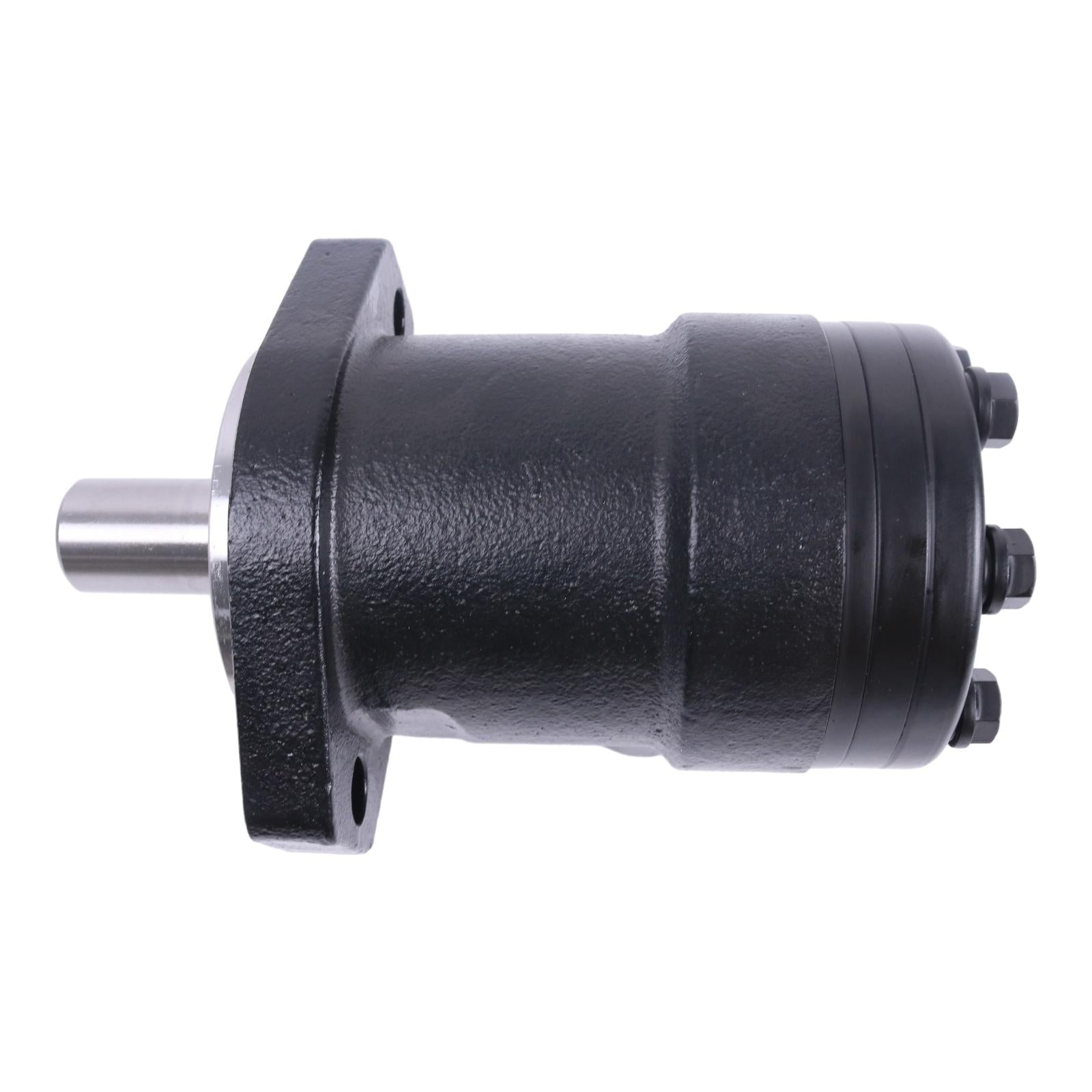

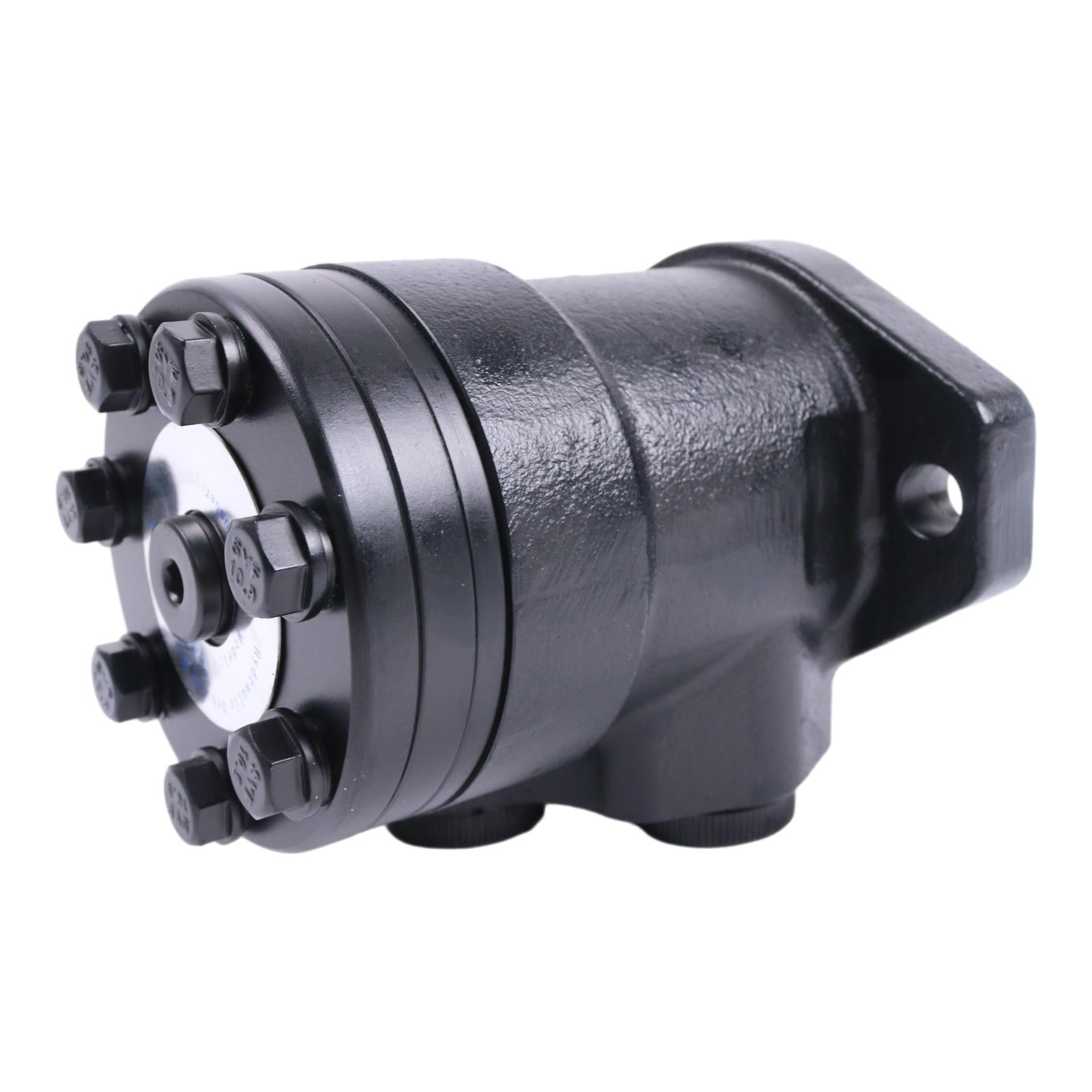

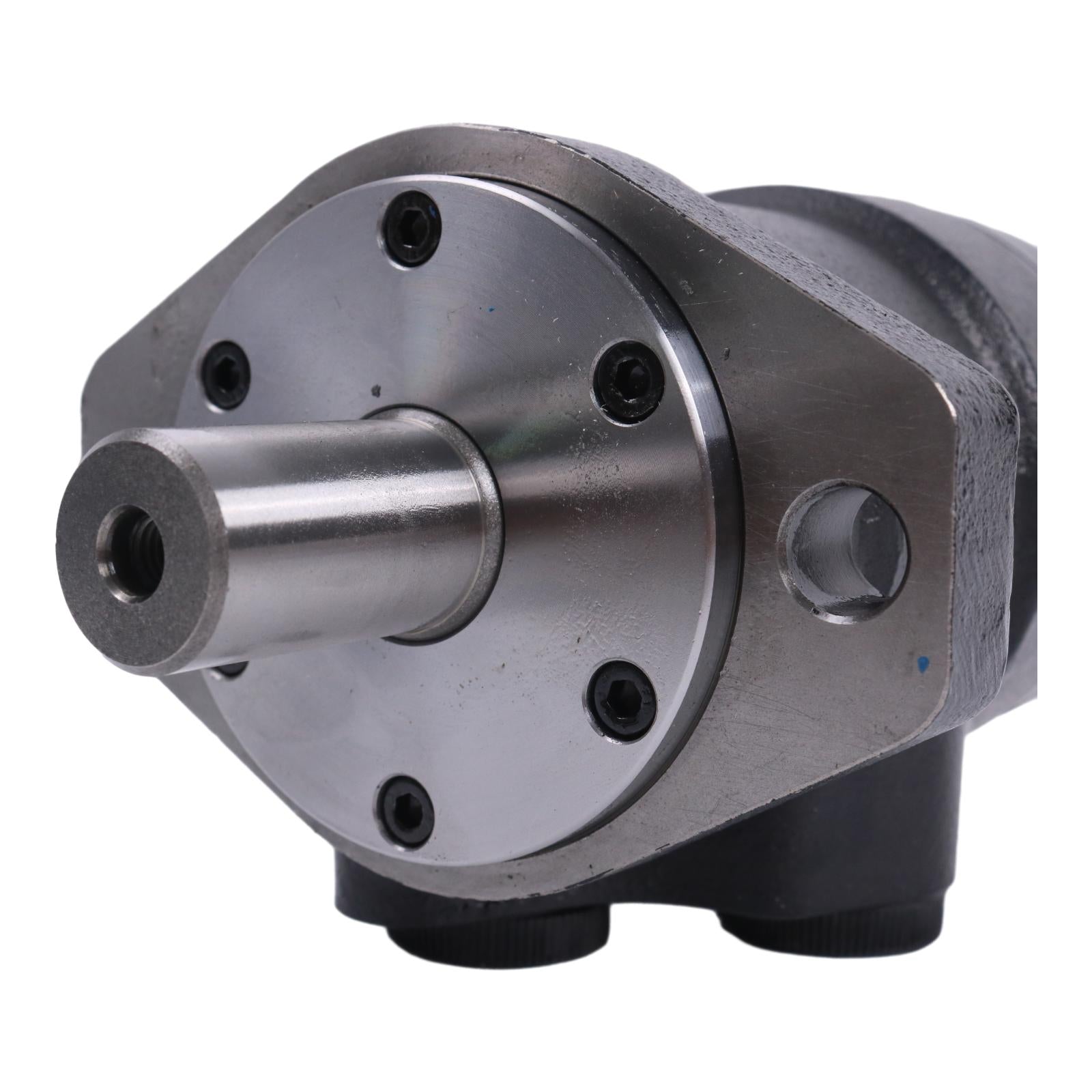

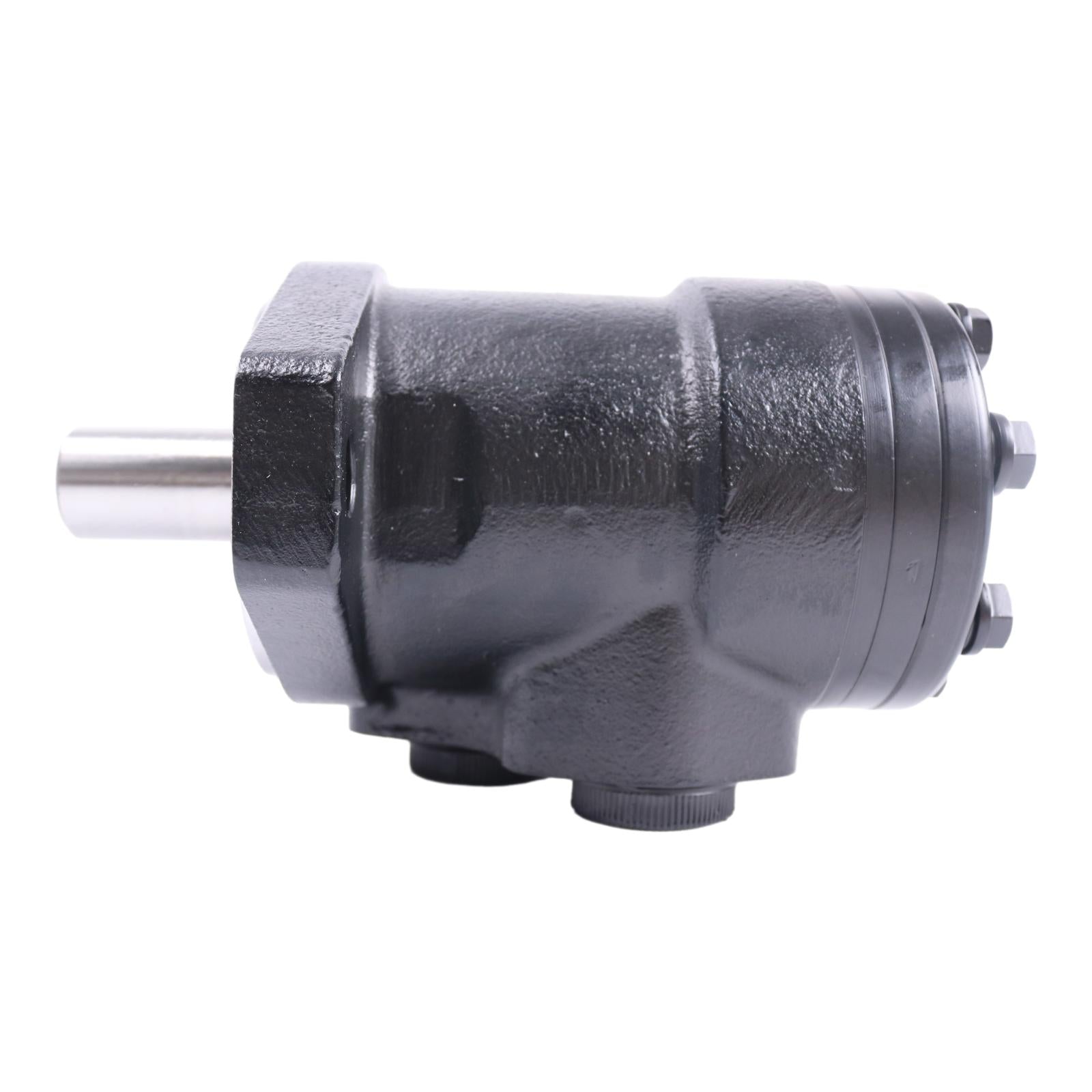

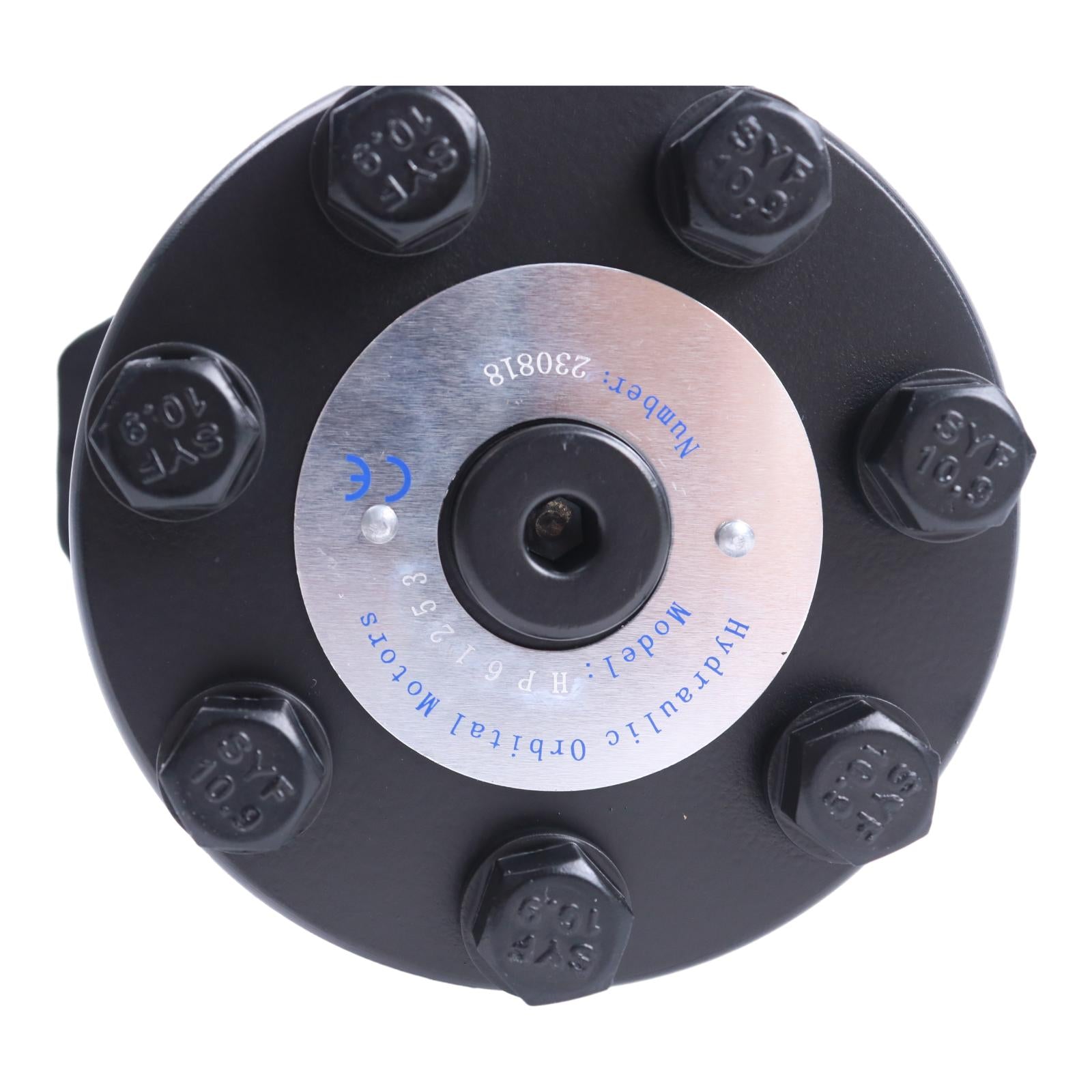

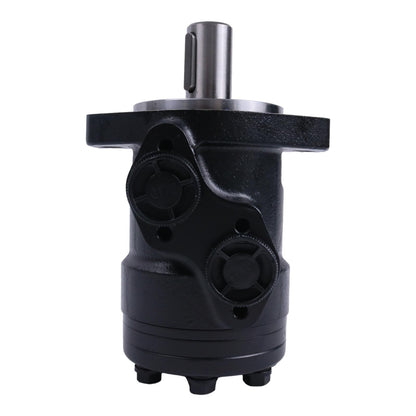

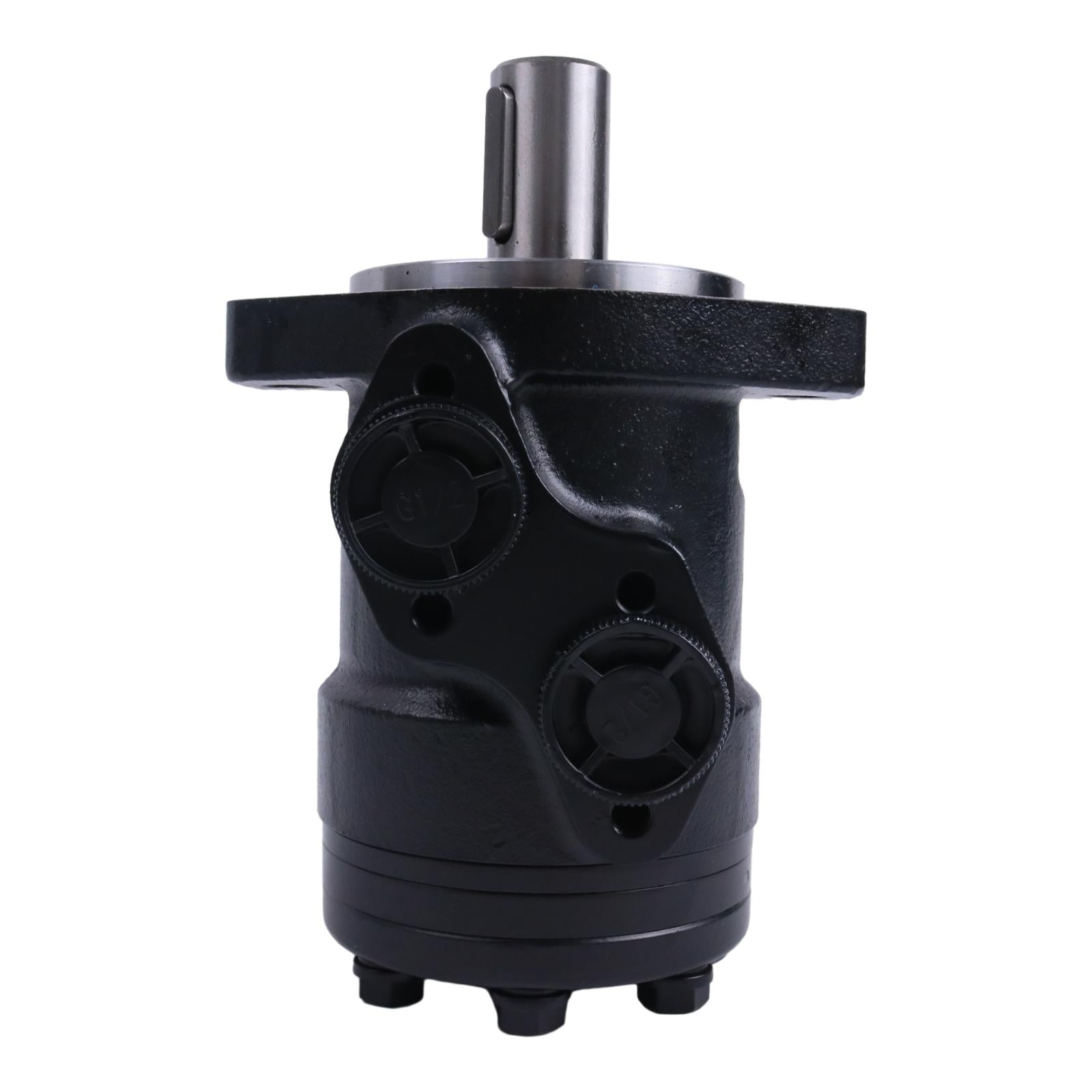

1'' 1/2 BSP Hydraulic Orbital Motor OMP50 - 151-0300 151-0600


Price:
$229
 More payment options

Description

Part Name: Hydraulic Orbital Motor
Manufacturing Part Number: OMP50 - 151-0300, OMP50 - 151-0600, 1510300, 1510600
Specification:
Type: OMP
Motor Size: 50
Geometric displacement: 48.6cm³/[2.97in]
Max speed cont: 1230 rpm
Max speed int: 1540rpm
Max torque cont: 93Nm/[820lbf in]
Max torque int: 120Nm/[1060lbf in]
Max output power cont: 10.0kW/[13.4hp]
Max output power int: 12.0kW/[16.1hp]
Max pressure drop cont: 140bar/[2030psi]
Max pressure drop int: 175bar[2540psi]
Max pressure drop peak: 225bar[3260psi]
Max oil flow cont: 60L/min
Max oil flow int: 75L/min
Max starting pressure with unloaded shaft: 10bar/[145psi]
Min starting torque at max press drop cont: 80Nm/[710lbf in]
Min starting torque at max press drop int: 100Nm/[890lbf in]
Max inlet pressure cont: 175bar/[2540psi]
Max inlet pressure int: 200bar/[2900psi]
Max inlet pressure peak: 225bar/[3260psi]
Max return pressure with drain line cont: 175bar/[2540psi]
Max return pressure with drain line int: 200bar/[2900psi]
Max return pressure with drain line peak: 225bar/[3260psi]
