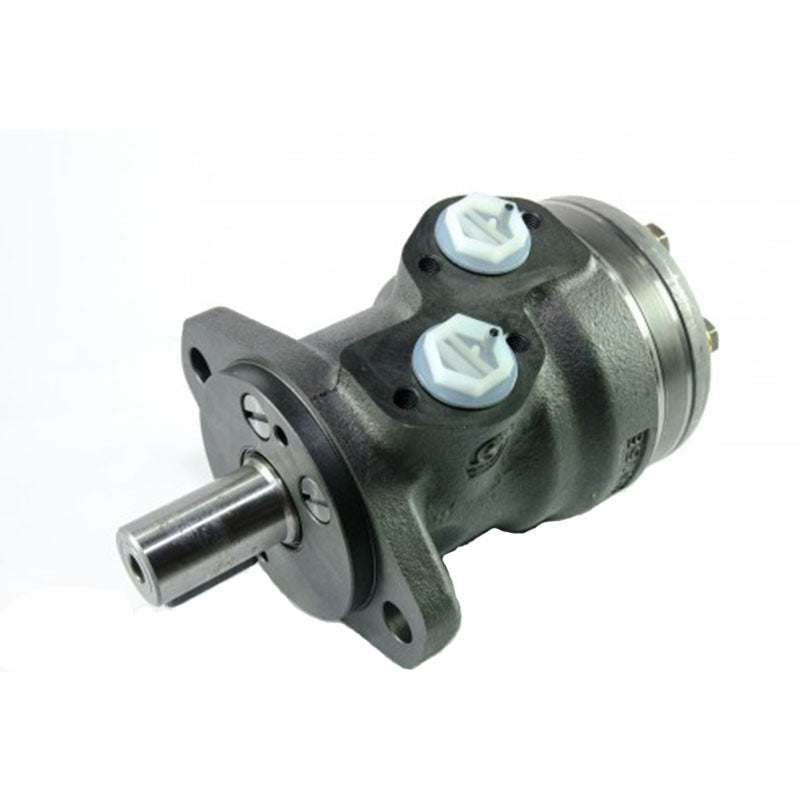

1'' 1/2 BSP Hydraulic Orbital Motor OMP200 - 151-0605 151-0305


Price:
$245
 別のお支払い方法

Description

Part Name: Hydraulic Orbital Motor
Manufacturing Part Number: OMP200 - 151-0305, OMP200 - 151-0605, 1510305, 1510605
Specification:
Type: OMP
Motor Size: 200
Geometric displacement: 194.6cm³/[11.91in]
Max speed cont: 310 rpm
Max speed int: 385rpm
Max torque cont: 300Nm/[2660lbf in]
Max torque int: 380Nm/[3360lbf in]
Max output power cont: 8.0kW/[10.7hp]
Max output power int: 11.0kW/[14.8hp]
Max pressure drop cont: 115bar/[1670psi]
Max pressure drop int: 150bar[2180psi]
Max pressure drop peak: 225bar/[3260psi]
Max oil flow cont: 60L/min
Max oil flow int: 75L/min
Max starting pressure with unloaded shaft: 5bar/[75psi]
Min starting torque at max press drop cont: 270Nm/[2390lbf in]
Min starting torque at max press drop int: 360Nm/[3190lbf in]
Max inlet pressure cont: 175bar/[2540psi]
Max inlet pressure int: 200bar/[2900psi]
Max inlet pressure peak: 225bar/[3260psi]
Max return pressure with drain line cont: 175bar/[2540psi]
Max return pressure with drain line int: 200bar/[2900psi]
Max return pressure with drain line peak: 225bar/[3260psi]
