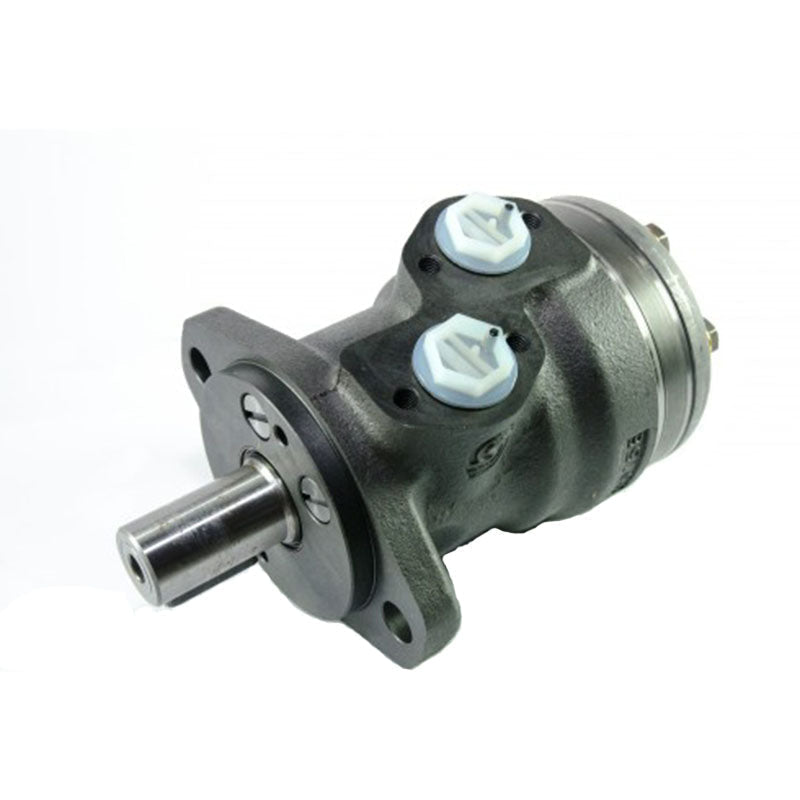

25mm G1/2'' Hydraulic Orbital Motor OMR100 - 151-0712 OMR X 100 - 11186674


Price:
$199
 別のお支払い方法

Description

Part Name: Hydraulic Orbital Motor
Manufacturing Part Number: OMR100 - 151-0712, OMR X 100 - 11186674, BMR-100-2ADN1
Specification:
Type  OMR
Motor Size 100
Geometric displacement  99.8cm³/[6.11in]
Max speed cont  600 rpm
Max speed int  750 rpm
Max torque cont  240Nm/[2120lbf in]
Max torque int  280Nm/[2480lbf in]
Max output power cont  13.0kW/[17.4hp]
Max output power int  15.0kW/[20.1hp]
Max pressure drop cont  175bar/[2540psi]
Max pressure drop int  200bar/[2900psi]
Max pressure drop peak  225bar[3260psi]
Max oil flow cont  60L/min
Max oil flow int  75L/min
Max starting pressure with unloaded shaft  10bar/[145psi]
Min starting torque at max press drop cont  200Nm/[1770lbf in]
Min starting torque at max press drop int  230Nm/[2040lbf in]
Max inlet pressure cont  175bar/[2540psi]
Max inlet pressure int  200bar/[2900psi]
Max inlet pressure peak  225bar/[3260psi]
Max return pressure with drain line cont  175bar/[2540psi]
Max return pressure with drain line int  200bar/[2900psi]
Max return pressure with drain line peak  225bar/[3260psi]
