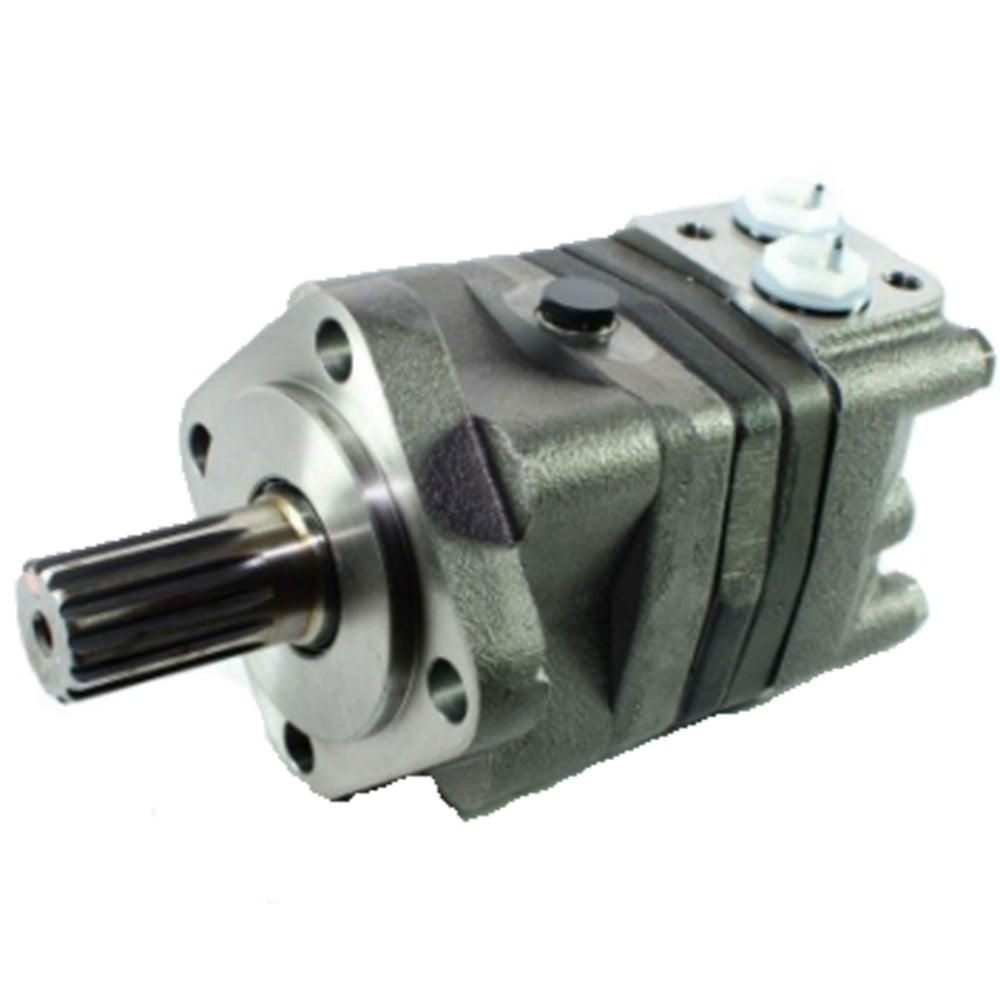

1.25'' 1/2 BSP Hydraulic Orbital Motor OMS125-151F0509 151F0509 OMS125151F0509


Price:
$399
 別のお支払い方法

Description

Part Name: Hydraulic Orbital Motor
Manufacturing Part Number: OMS125-151F0509, 151F0509, OMS125151F0509
Specification:
Type: OMS
Size: 125
Geometric displacement: 125.7cm³/[7.67in]
Max speed cont: 600 rpm
Max speed int: 720 rpm
Max torque cont: 375Nm/[3320lbf in]
Max torque int: 490Nm/[4340lbf in]
Max output power cont: 18.0kW/[24.1hp]
Max output power int: 22.5kW/[30.2hp]
Max pressure drop cont: 210bar/[3050psi]
Max pressure drop int: 275bar/[3990psi]
Max pressure drop peak: 295bar[4280psi]
Max oil flow cont: 75L/min
Max oil flow int: 90L/min
Max starting pressure with unloaded shaft: 10bar/[145psi]
Min starting torque at max press drop cont: 290Nm/[2570lbf in]
Min starting torque at max press drop int: 380Nm/[3360lbf in]
Max inlet pressure cont: 230bar/[3340psi]
Max inlet pressure int: 295bar/[4280psi]
Max inlet pressure peak: 300bar/[4350psi]
Max return pressure with drain line cont: 140bar/[2030psi]
Max return pressure with drain line int: 175bar/[2540psi]
Max return pressure with drain line peak: 210bar/[3050psi]
