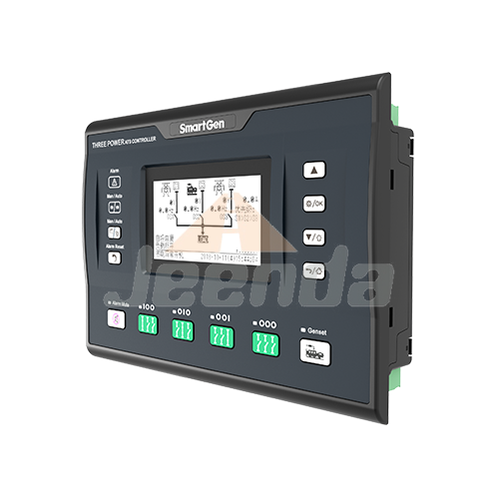

Engine Generator Controller Module HAT833 Generator Control ATS Module

Engine Generator Controller Module HAT833 Generator Control

HAT833 Three Power ATS controller is an intelligent tri-supply module with configurable function, automatic measurement, LCD display, and digital communication. It combines digitization, intelligence, and networking. Automatic measurement and control can reduce incorrect operation, which is an ideal option for ATS.

• Product Code：6020037
• Power Supply：DC(8-35)V
• Case Dimensions：260*180*54(mm)
• Panel Cutout：242*161(mm)
• Operating Temp. ：(-25~+70)℃
• Weight：1.2kg

CHARACTERISTICS:

1. System type can set as Mains-Mains-Gen, Mains-Mains-Mains, Mains-Gen-Mains, etc;

2. 4.3 inches solid color 240x128 LCD display with white backlight, multilingual interface (including English, Simplified Chinese or other languages), push-button operation;

3. Collect and display 3-way 3-phase voltage, frequency and phase sequence;

4. Collect and display load active power, reactive power, apparent power, power factor and current;

5. S1/S2/S3 separated over current warning/ trip alarm;

6. NEL (Non-essential Load) trip function;

7. Display S1/S2/S3 total kW energy, total kvar energy, total close times;

8. Display continuous power supply time and S1/S2/S3 total power supply time;

9. For Stored-Energy type ATS, its close relay will active after the PF Input is active;

10. Over/under voltage, over/under frequency, over current, loss of phase, phase sequence wrong protection;

11. Automatic/Manual mode. In manual mode, can force the switch to close or open;

12. All parameters can be set on site. Passwords authentication ensures authorized staff operation only;

13. The Genset can be manual test on-site to achieve start/stop operation;

14. Automatic re-closing;

15. The closing output signal can be set as on intervals or as continuous output;

16. Applicable for 3 isolated neutral lines;

17. Real-time clock (RTC); event log function (event log can record 200 items circularly);

18. Scheduled routing run & scheduled not run (can be set as start Genset once a day/week/month whether with load or not);

19. Can control two generators to work as cycle run mode, master run mode, and balance run mode;

20. Widely DC power supply range allows the controller can bear instantaneous 80V DC input;

21. Large terminal space allows the controller can bear maximum 625V AC voltage input;

22. With Dual-RS485 isolated communication interface. With "remote controlling, remote measuring, remote communication, remote regulating" function by the Modbus-RTU communication protocol. Can remote start/stop the Genset and remote control the breaker to close or open;

23. Suitable for various AC systems (3-phase 4-wire, 3-phase 3-wire, single-phase 2-wire, and 2-phase 3-wire);

24. Modular design, self-extinguishing ABS plastic shell, pluggable terminal, built-in mounting，compact structure with easy installation.
