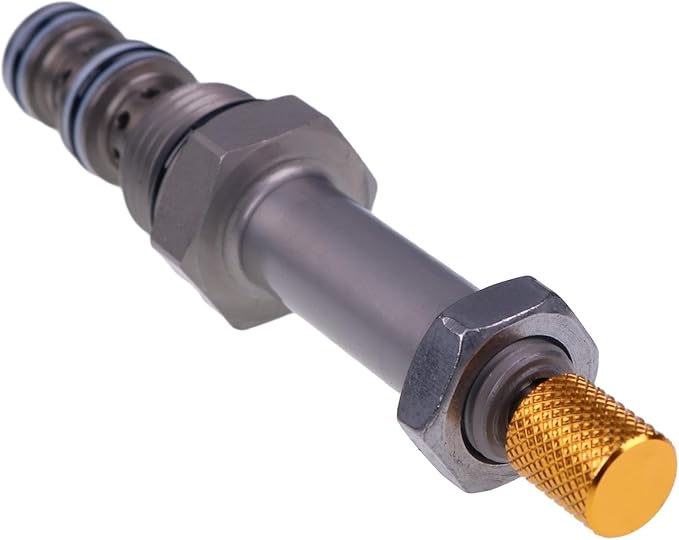

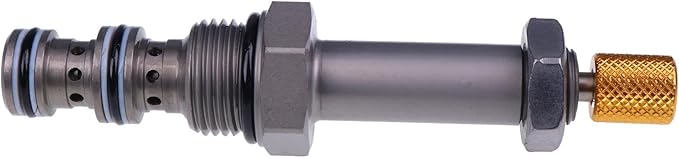

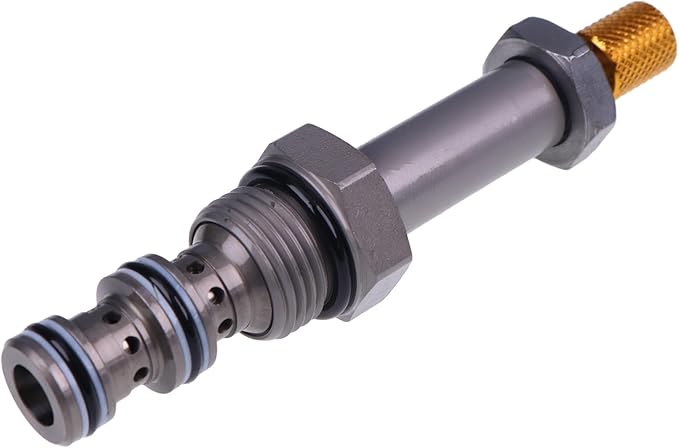

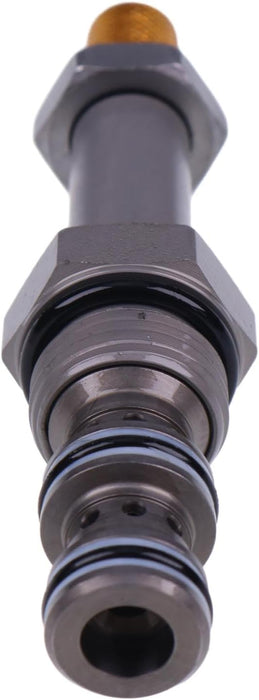

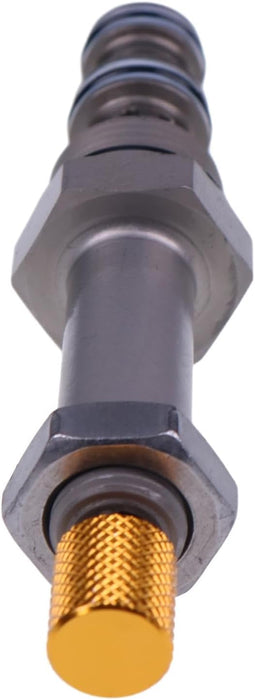

Solenoid Cartridge Valve Spool SV08-31M-0-N-00 3-Way, 3 GPM compatible with

Part number: SV08-31M-0-N-00

Solenoid Operated Cartridge Selector Valve
When de-energized, the SV08-31 allows flow from 1 to 2, while blocking flow at 3.
When energized, the valve’s spool shifts to open from 3 to 1, while blocking at 2.
Solenoid-operated, three-way, direct-acting, spool-type, screw-in hydraulic cartridge valve.
3 Way 2 Position Connects Port 1 to Port 2 in de-energized position Connects Port 1 to Port 3 in energized position

Features:
3 GPM max Flow
3000 PSI Rated
Fits VC08-3 Cavity
Uses Size 08 (1/2″ Hole) Solenoids
